BCCH data uncovered

BCCH data uncovered

.
The data found in the elementary file broadcast control channel (EFBCCH) 7F20:6F74 / 7F21:6F74 can provide useful data relating to a geographical radio area when combined with location area information data.
.
Method for translating BCCH information data. The question is, is the translation below to find the BCCH frequencies correct and what have I not mentioned below? You will need copies of GSM11.11, GSM03.03, GSM04.08 as well as understanding coding schemes.
.

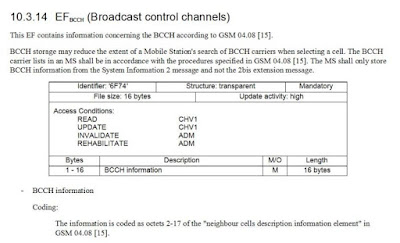

FIGURE 1 What the Standard states:
.
FIGURE 2 What that means:
.

.
FIGURE 3 Harvested data from a Orange SIM Card read:
.


.
FIGURE 4 Translating the hex output to binary:
.


.
FIGURE 5 Converting to decimal digits which translates again and corresponds to GSM assigned uplink/downlink frequencies:
.
BCCH Frequencies (ARFCN)
761 765 766 774 781 782 786 787 789 790 797 799 801 803 806 813 816 825 828 829 838 846 847 849 869
.
FIGURE 6 Corroborating the conversion using another tool:
.
.
